| Brand Name : | Huayide |
| Model Number : | HYD-VNAP |
| Certification : | CE&ISO |
| Price : | can be negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 900000KGS PER Month |
| Delivery Time : | 10-20 working days |
Very Narrow Aisle Pallet Racking (VNA)
Very narrow aisle pallet racking condenses standard pallet racking into a smaller area which is conspired to generate a high-density storage system from the vertical level.
VNA · Warehouse Storage Rack · Made In China
Key Features
—
- Direct access to all the unit loads
- Save up to 40% of space by reducing the work aisles
- Simple assembly, disassembly, and re-adaptation of load levels
- Compatible with any type of goods, by weight or volume
- Allows pallet storage at floor level on the lowest level of the
racking.
- Flexible enough to install stacker cranes.
VNA · Warehouse Storage Rack · Made In China
Specification
—
| Standard Size | L2300*D1000*H4500 and size can be customized as your request |
| Height | 1500-8000mm or Customized; |
| Width/Depth | 400-1500mm or Customized; |
| Length | 1500-3200mm or Customized; |
| Color | In default, the Upright frame is blue, and the Beam is orange, which can be customized. |
| Raw Material | High-quality Q235 cold-rolled steel |
| Upright-Section | 80*60*1.5/1.8/2.0mm,90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm, etc. |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm,160*45mm,180*45mm etc. |
| Layers | Customizable |
| Pitch Holes | 75mm |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Surface Treatment | Powder coated |
| Packaging | Air bubble, Wooden Case, etc. |

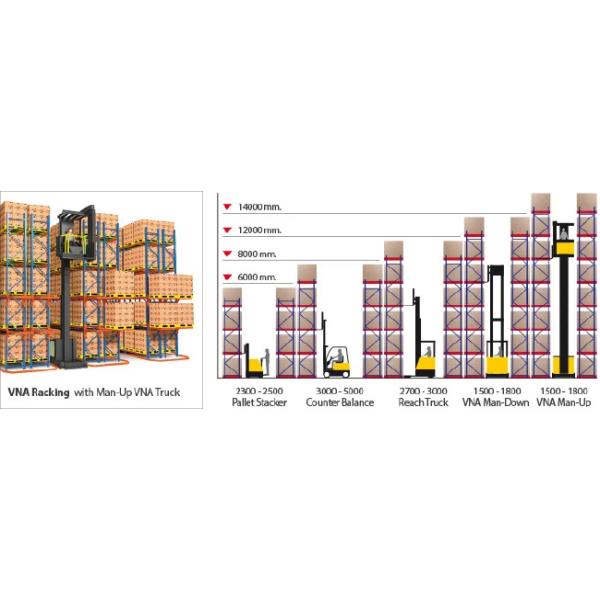

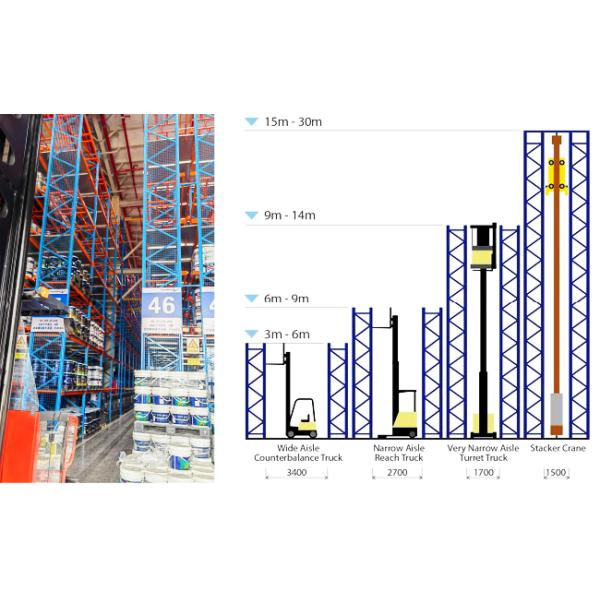

FrameUprightHeight & AisleTypes
VNA · Warehouse Storage Rack · Made In China
High-RiseVNA Racking Components
—
VNA · Warehouse Storage Rack · Made In China
CASE
—
VNA · Warehouse Storage Rack · Made In China
VNA · Warehouse Storage Rack · Made In China
VNA · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
