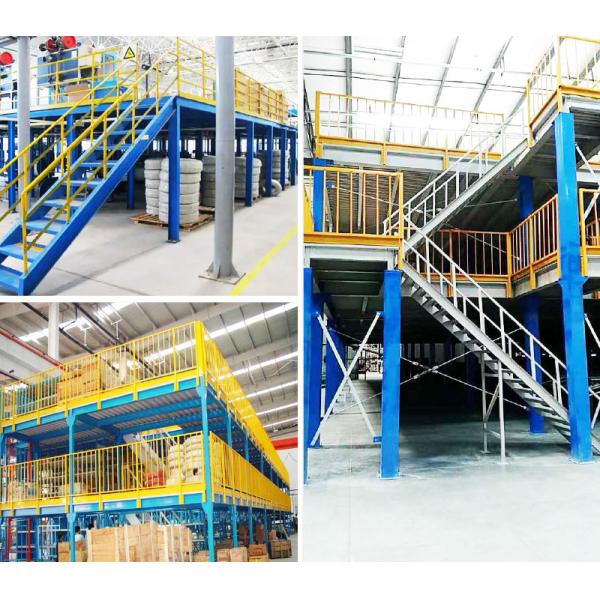

Steel Structure Garret
Mezzanine Floor Platform
——
What is a structural steel platform?
—
Warehouse mezzanine floor is an elevated platform within a
warehouse, creating additional usable space for storage or work
areas. These structures maximize vertical space, allowing
businesses to efficiently utilize warehouse capacity. Mezzanine
floors are versatile and can accommodate various activities, such
as additional storage, offices, or assembly lines.
Warehouse mezzanine floors mezzanine platforms contribute to
optimizing warehouse organization and increasing overall
operational efficiency. With a modular and customizable design,
mezzanine floors provide a cost-effective solution for expanding
the workspace without the need for extensive construction or
relocation.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Product Structure
—
Upright & Main Beam Connect
Both of them are H-steel,Its loading capacity is high and span is
long.The major beams are connected by connector piece in each
side.It will make the beams moare stable.They are connected with
the hanging piece.And the hanging piece is welded on the main
beam.So the majorbeam is more stable.
Steel Panel & Guardrail Connect
Steel panel and support beamare connected with hooks.It is very stable.The guardrail hangs on the main beam without holes on the beam.So there is no bad influence on the beam.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Features & Advantages
—
1. All composite structure, and uprights are made from square or
round tube, girders are from H type steel. Cold rolling steel is
used to make walkways.
2. Special locks are adopted to fix walkway and girders tightly.
The walkway has such advantages as good loading capacity, high
precision, quite smooth walkway surface, and it's easy to be fixed
compared with regular walkway.
3. The Garret is equipped with lighting system, easy for accessing
and management of goods. Goods are to be conveyed to the second or
third floor by forklifts, lifts or staircases and then moved to the
pointed position by cart.
4. Compared with conventional concrete garret, steel structure
garret has much more advantages as quickly equipped, competitive
cost, simply assembling or dismantling, and moreover, this kind of
garret can be installed or dismantled freely from one warehouse to
another.
5. The whole garret is support certain amount of columns which
fixed on the warehouse ground and distance between columns is less
than 6000mm. Height of first level is around 3000mm, and H2500mm
for second and third floor level.
6. Loading capacity of floor can be designed to be no more than
1000kg / square meter. This type of garret combines perfectly
storage with management of goods by setting offices on the garret.
7. Steel structure garret is mostly used for the third part
logistics and mechanical Manufacturing industry.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
CASE
—
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
