www.heavyracking.com, Warehouse Racking Made In China.
5 Years
| Ask Lasest Price | |
| Brand Name : | HYD |
| Model Number : | HYD-SB |
| Certification : | ISO |
| Price : | USD 30 ~ 230 per set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5000 sets per month |
| Delivery Time : | 25 days |

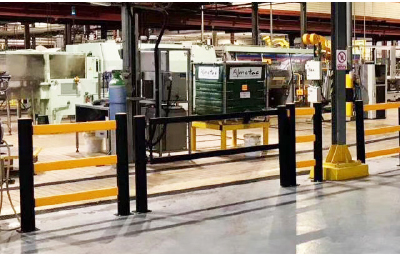

LC LS Safety Barrier
Warehouse flexible anti-collision system
——
FS-2023A
LS-1 Safety Barrier
——
Applicatio: Suitable for protection of ultra-low areas to prevent injuries caused by fork
| Part | Characteristic Description |
| Tube | Exclusively designed by imported macromolecular materials, strong weather resistance, durable, original color, ISO4892-3 approved, strong chemical resistance, no erosion, low level of chemical activity. |
| Base | Assembled by sorts of materials , including metal and rubber , electrophoresi s treatment of metal ; neutra l salt-fog test 72 hours , do not rust . |
| Ground Connector | Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust. |
Safety Barrier · Warehouse Storage Rack · Made In China
Applicatio
It is suitable for use in areas such as pedestrian-vehicle separation passages, to limit vehicle routes, and to protect the safety of personnel and assets.
Safety Barrier | Absorbable Impact Energy The forklift and the safety barriers are 90 ° | |||
The impact of the forklift's tail is on the middle of the 1.6m safety barrier beam | The impact of the forklift's tail is on the center of the post. | |||
| Vehicles(Tons) | Speed(km/h) | Vehicles(Tons) | Speed(km/h) | |
| LS-1 | 1.5 | 4 | 1.5 | 3 |
| LC-1 | 2 | 5 | 2 | 2 |
| LC-2 | 2 | 5.5 | 2 | 2 |
| LC-3 | 2 | 6 | 2 | 2 |

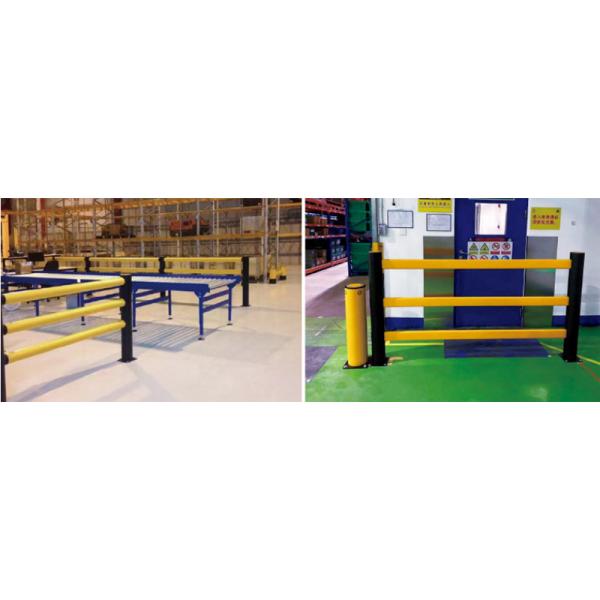

LC-1 Safety Barrier
——
LC-2 Safety Barrier
——
LC-3 Safety Barrier
——
Safety Barrier · Warehouse Storage Rack · Made In China
| Part | Characteristic Description |
| Tube | Exclusively designed by imported macromolecular materials, strong weather resistance, durable, original color, ISO4892-3 approved, strong chemical resistance, no erosion, low level of chemical activity. |
| Base | Assembled by sorts of materials, including metal and rubber, visible metallic parts are spray painted in black; neutral salt-fog test 500 hours, do not rust. |
| Ground Connector | Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust; fastened by SS304 cap nut. |
Safety Barrier · Warehouse Storage Rack · Made In China
Product Description
——
1. Exclusive development of Memaplex polymer that can absorb impact
force.
2. Designed by engineering science, the product has built-in memory
performance, and can be restored and reused after collision.
3. The patented technology of dynamic coupling structure can reduce
and eliminate dynamic impact energy to achieve the best impact
energy absorption effect.
4. 80% of the impact force in the impact process can be absorbed
and eliminated, and the base and bolts fixed on the ground get the
best protection.
5. The material color is formed naturally in the manufacturing
process, the product is not easy to fade, durable, no need to
repaint, light rotation up to 78 class.
6. Strong weather resistance, can avoid temperature difference,
cold and other climate factors caused by the material damage, uv
protection and testing in line with ISO4892-3 standards.
7. Strong chemical resistance, no corrosion, material chemical
activity is very low, in line with ISOTR 10358 standard.
8. Excellent wear resistance, hardness up to 66 (referring to
ISO868 standard).
9. The products are non-toxic and the materials comply with
international food contact laws and regulations.
10. Scientific engineering design structure can achieve excellent
sealing performance of products.
11. Standard base is specially coated (tested for 2000 hours in
rapid salt spray environment without any rust).
12. Modular design, high flexibility in installation and
maintenance, can realize separate replacement of guardrail beam and
column.
13. Green environmental protection, the product can be degradable
and recycled, and does not produce any toxic gas when burning.
14. The product is completely insulated and non-conductive.
