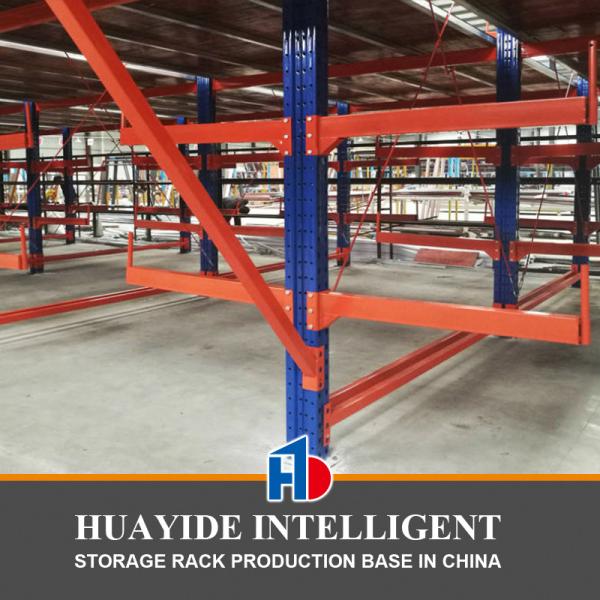

Cantilever Rack
——
Cantilevered Mezzanine
Combined Type Cantilever Rack Mezzanine System is a combination of mezzanine floor and Cantilever Racking. Use high columns to divide storage space into multi-stores floor. After precision calculation and designing, with the shared supporting columns of mezzanine, expand the space into cantilever racking. Make mezzanine and cantilever racking into a whole system.
Cantilevered Mezzanine Rack · Warehouse Storage Rack · Made In China

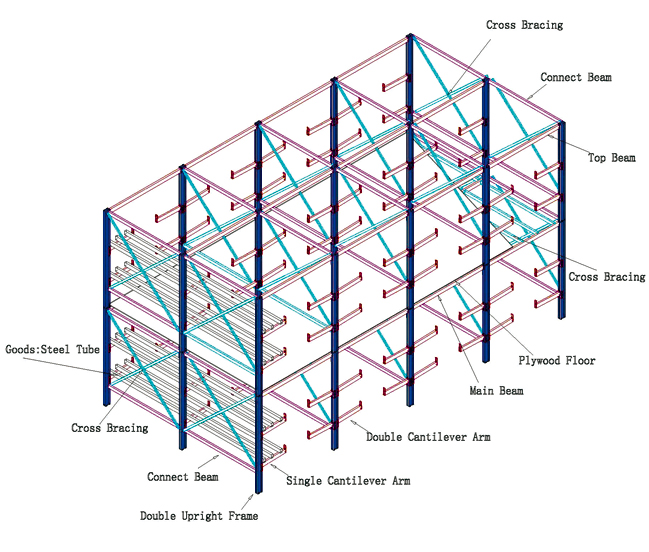

Structural Principles
——
Cantilevered Mezzanine Rack · Warehouse Storage Rack · Made In China
Product Advantage
——
No.1 / Structural Stability
Increased connection beams between the upright columns of mezzanine and cantilever racking. Make the mezzanine firmer and the cantilever racking more stable.
No.2 / Save Cost
The use of shared upright columns reduces the total quantity of columns and saves the cost of whole construction.
No.3 / Expand Space
Reduced the quantity of columns, correspondingly increase the effective use of storage space.
No.4 / Neat
The setting of the cantilever racking is integrated with the mezzanine structure and is consistent with the direction of the mezzanine beam. The stock keeping unit is uniform and tidy.
No.5 / Easy To Disassemble
All structures are linked, snaps and screws connected, can be freely added or subtracted or disassembled.
Cantilevered Mezzanine Rack · Warehouse Storage Rack · Made In China
Cantilevered Mezzanine Rack · Warehouse Storage Rack · Made In China
Cantilevered Mezzanine Rack · Warehouse Storage Rack · Made In China
Cantilevered Mezzanine Rack · Warehouse Storage Rack · Made In China
Cantilevered Mezzanine Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
