Gravity Racking
——
Gravity Pallet flow rack
By using roller system or pallets with roller and under the influence of gravity, "first in and first out" for the goods is achieved. It is used for storaging large quantity of goods of the same kind. And full use of the space can be made.
Gravity Racking · Warehouse Storage Rack · Made In China
Gravity Pallet Rack is evolved from pallet rack, consisted of frame, beam, roller, damper and separator. Roller is fixed on the rack at a certain slope beams. The pallet enter from the loading end of the rack, using its gravity sliding down to the unloading end. Rollers let the pallet move smoothly by its own gravity. Once the pallet is removed from the unloading end, the next-to-come pallet slides forward automatically. In order to prevent the flow of goods through the pallet unit fast, the damper is installed at some distance to decrease their sliding speed. At the unloading end, separator is installed to separate pallet one by one, to keep the first pallet can take out. It is suitable for large quantity and shortly store goods,like food industry, especially for perishable food storage, is an ideal system.
Dynamic Storage Pallet Gravity Flow Rack is a storage system that Gravity roller lanes ranged side by side and one above the others on the racks. Pallets are loaded from the upper end of the slope (with 3-5° ) and travel through the roller to the lower end picking face. It's the best FIFO storage system and is suitable for mass volume and lesser SKU products. The space utilization is high.
Gravity Racking · Warehouse Storage Rack · Made In China

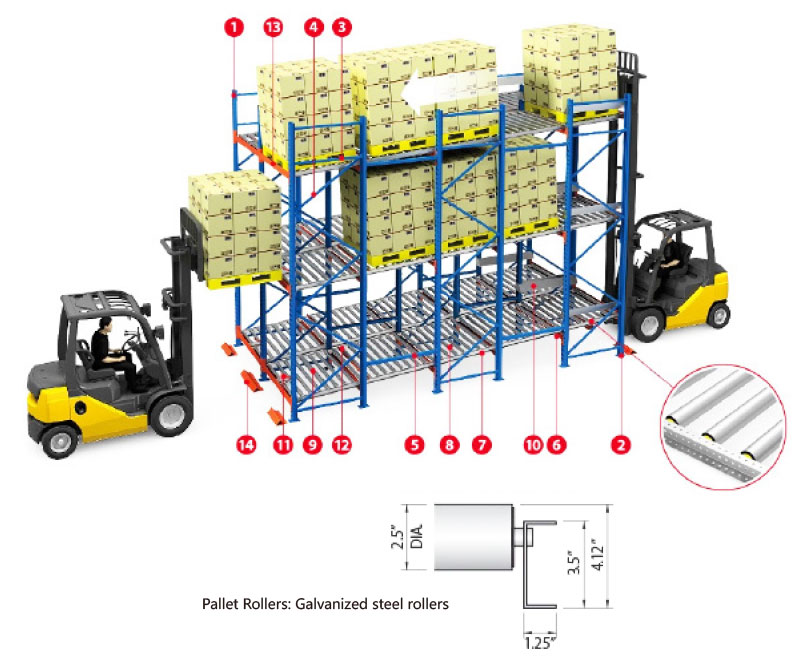

Structural Principles
——
1.Column 2.Foot Plate 3.Horizontal Bracing 4.Diagonal Bracing 5.Row Spacer 6.Supported Beam 7.Flow Rails 8.Rollers 9.Brake Rollers 10.Entry Guide 11.Safety Separator 12.Separator End Stop 13.End Stop 14.Forklift Stopper Plate
Gravity Racking · Warehouse Storage Rack · Made In China
1. Industrial Heavy Duty Warehouse Pallet Gravity FIFO Rack is
composed of frames, beams and roller bed. The roller bed consists
of a set of rollers designed to fit into a frame structure and
mounted on the loading beams. To avoid the fast sliding down of
pallets, normally brake rollers are designed. There is also one set
of pallet separator for picking the first pallet. The system is
designed for the storage of first in first out operation.

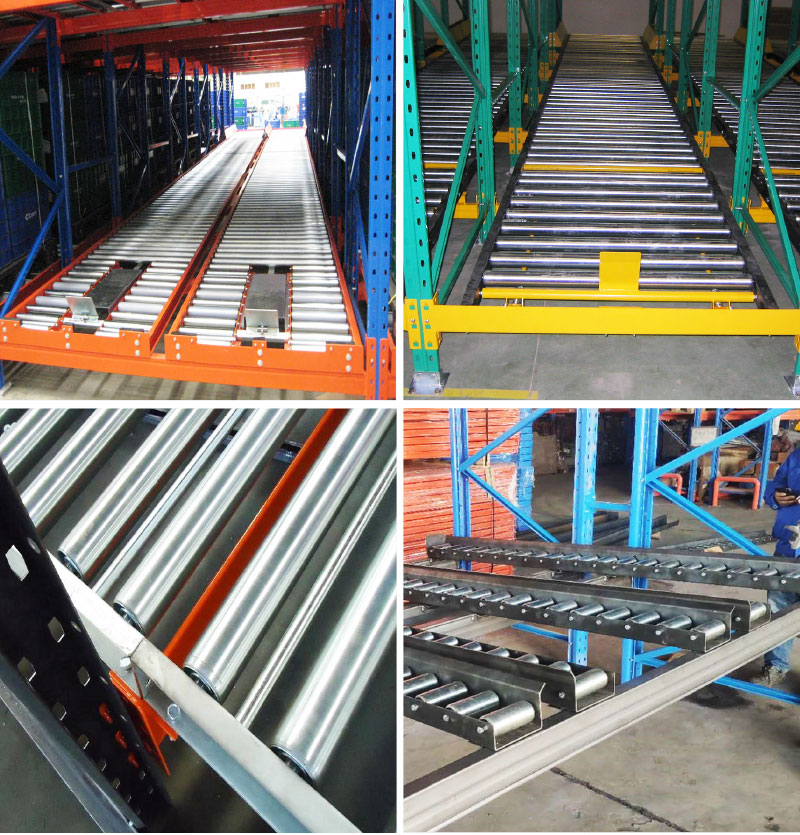

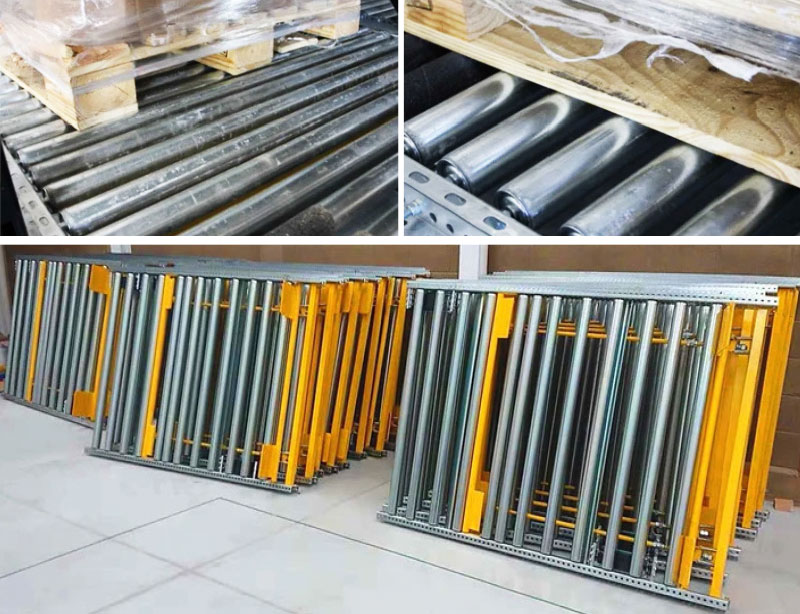

2. The roller bed is composed of a number of unpowered rollers, C
section frames, brake rollers, entry guide and pallet separators: The roller bed are made into standard modules and connected by
bolts and nuts.
| Unpowered roller features | |||||
| 1. Standard 300/1800 rollers | 2. Loading of roller: 50-300kg/pcs | ||||
3. Maintenance free | 4. Bearings: Sturdy and Durable | ||||
5. waterproof, dust free | 6. long life span | ||||
3. Brake rollers: For the safety operation of flow rack, the brake rollers are
installed on the flow bed to reduce the sliding speed of the
pallets.
Gravity Racking · Warehouse Storage Rack · Made In China

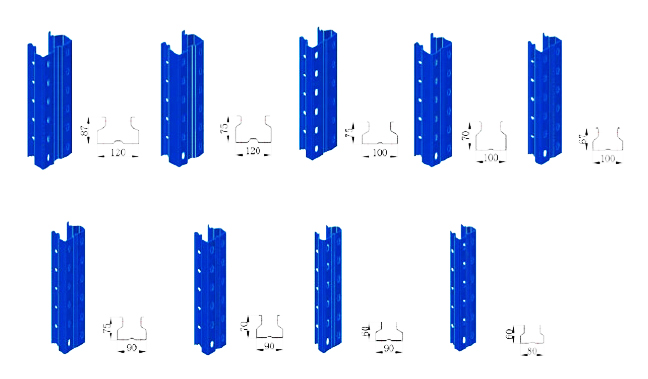

Uprights
——
Column Specification (mm) | Thickness (mm) | Upright Loading (kg) | |||
| W80× D60 | 1.8～2.0 | 4000～6000 | |||
| W85×D67 | 1.8～2.3 | 7500～12500 | |||
| W90 × D60 | 1.8～2.5 | 8000～10000 | |||
| W90 × D70 | 1.8～2.5 | 10000～12000 | |||
| W100 x D70 | 2.0～2.5 | 11000～14000 | |||
| W120 x D95 | 2.3-3.0 | 17000～21000 | |||
Gravity Racking · Warehouse Storage Rack · Made In China
Beams
——
Loading (kg)
Gravity Racking · Warehouse Storage Rack · Made In China

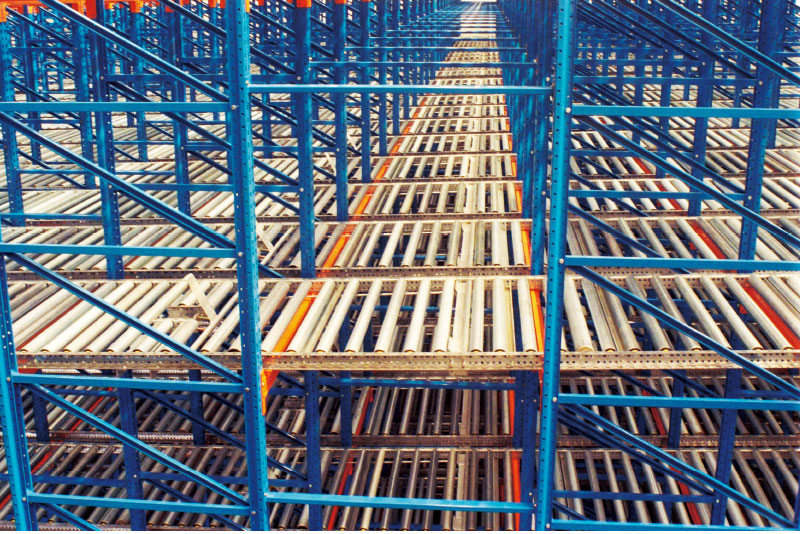

Application
——
Gravity Racking · Warehouse Storage Rack · Made In China
Product Features
——
1) High-density and low energy storage system
2) Save more space and store more goods efficiently
3) Help to keep forklift driver at a safe place
4) First-in-first-out working mode
5) Deeper system, can be designed to 15 pallets one lane
6) The load capacity of each pallet can be up to 1500kg;
Gravity Racking · Warehouse Storage Rack · Made In China

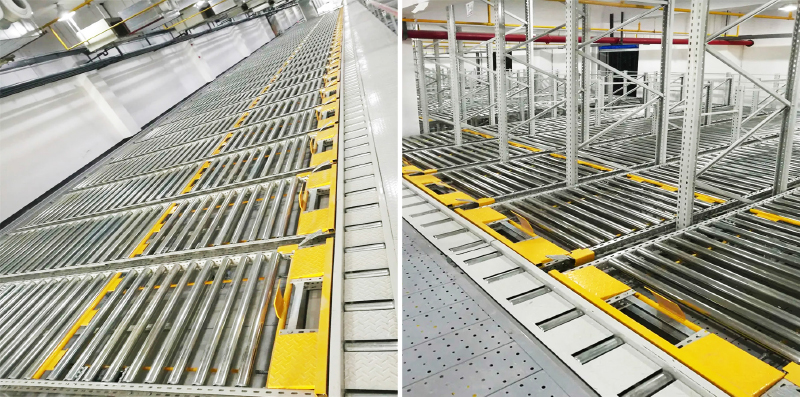

CASE
—
Gravity Racking · Warehouse Storage Rack · Made In China
Gravity Racking · Warehouse Storage Rack · Made In China
Gravity Racking · Warehouse Storage Rack · Made In China
Gravity Racking · Warehouse Storage Rack · Made In China
Gravity Racking · Warehouse Storage Rack · Made In China
Gravity Racking · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
