Electric Mobile Racking
—— Rail-Guided ——

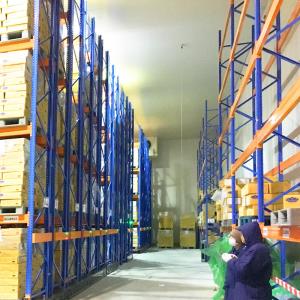

• The electric mobile racking system is ideal for users who want to expand storage but are limited by the floor space in the warehouse. The maximumly used floor space render the mobile racking system a perfect choice for cold storage.
• Only one channel, the space utilization rate is very high. The bearing trolley is driven by the motor, and the trolley is placed with beam type shelves and cantilever shelves. The frequency conversion speed regulation makes the shelves extremely stable from start to brake, and the safety is guaranteed.
• According to the bearing, electric mobile racking system can be divided into heavy, medium and light three kinds, generally heavy racks use electric control for easy movement, light and medium generally use hand movement. The shelf system can greatly improve the utilization rate of the warehouse area, so it is widely used in the media, library, finance, food and other industry warehouses.

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Product Advantage

—

• Easy to use ,higher reliability.Height is higher than trackless.
• Larger load capacity, each column can reach more than 30 meters in length.
• Lower price than trackless, saving investment costs.

Technical Specifications

—

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Product Categories

—

1. Open mobile racks
The transmission mechanism is arranged in the base of the rack, and the operation panel is arranged at the end of the shelf, with a simple appearance and convenient operation. The front and rear of the shelf are equipped with safety line switches, and the entire shelf will stop immediately when an obstacle is encountered.

2. Closed mobile racks
When the closed mobile racks do not need to access the goods, after the shelves are moved together, they are all closed and can be locked. Rubber seals are installed at the interface of each shelf, also known as closed shelves.

3. Electric Mobile Cantilever Racking System

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Applicable Scope

—

Suitable for cold storage, explosion-proof and need higher warehouse utilization situations;

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Structural Principles

—

• Electric mobile racking system is a high-density system for optimizing the space in the warehouse, where the racks are put on mobile chassis guided through tracks on the floor, although the advanced configuration can work without tracks.
• The chassis is equipped with motor enabling the racks to move along the tracks, leaving the opening for the forklift to access. Opening of only one aisle is required instead of many aisles for forklift to go through as in traditional selective racking system.

• The electric mobile racking system is equipped with PLC to execute commands from the remote control by the operator, smart functions like increasing the opening gap between chassis for better air circulation could be done through PLC programming, such functions make it a semi-automated racking system.
• Upright frames are fixed to the chassis, and beams are used to load the pallets and connect the uprights and chassis, sometimes shelves are used for storage of smaller items. Because the height a forklift could reach is often limited, this racking system is usually for warehouses with low and medium height.

Advantages of electric mobile racking system:
1 ) Suitable for cold storage, explosion-proof and need higher warehouse utilization occasions;
2 ) No chain transmission, simple and reliable structure, low failure rate;
3 ) By computer control, automatic, semi-automatic, manual function;
4 ) Can realize single column movement; multi-column group movement can be realized. Uniform dispersion can be achieved;
5 ) Single lane movement is available;multi-lanes movement is available;dispersed evenly is achievable;
6 ) Set up a channel, good sealing, expand the warehouse utilization space. Compared with ordinary shelves, it can improve the warehouse utilization rate of about 80%;
7 ) Fewer channels, no need to find channels when accessing goods, high storage efficiency;
8 ) The structure of the electric mobile rack is simple, the operation is simple, not only the operation process is safe and reliable, but also the emergency movement when the power is cut off;
9 ) Electric mobile racks only need to be equipped with forward forklifts or balanced forklifts to be used. Electric mobile shelves have low operation requirements for forklifts;
10 ) With anti earthquake dumping function;
11 ) Protective measures such as emergency stop switches, photoelectric access barriers, manual release systems, proximity sensors as well as photoelectric safety barriers are in place to ensure the safety of workers and goods;

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Working Principle

——

Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods, the mobile rack system is mainly composed of racks, mobile bases, motors, floor rails and electronic control electric parts.

Heavy-duty capacity makes it a natural choice for a number of storage challenges, from equipment and supplies to freezer and cooler storage. The ability to anchor this mobile pallet racking system to existing concrete makes it a cost-effective solution for increasing capacity in any space, without the need for renovation or expansion.

Two ways to lay the floor rails:
1. Laying of floor rails on existing ground (it is necessary to lay the rails in the ground pits and then carry out secondary cement pouring, and use after the cement ground is hardened)
2. Laying the floor rail on the ground floor of the new warehouse (directly when the warehouse floor is built, the floor rail is pre-buried, and the ground and floor rails are leveled flat)

The first layer of concrete is poured to a depth of 100MM and then the floor rail is laid, and then the second layer is poured to the horizontal plane.

Safety Protection Function

The mobile rack is operated manually or automatically by means of an integrated PLC system, The PLC software may be adapted to the client's specific needs or linked to client's WMS. Safety is guaranteed by a photoelectric beam system. mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency, resulting in a higher return on investment.

Touch Screeen And Operation Panelh

Different Choices Of Panel For Holding Goods

——

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Safety Equipment

• Huayide Electric Mobile racking have obtained CE certification issued by European authorities,In order to prevent safety problems caused by people or forklifts entering the aisle when the racking are running, the electric mobile racking are equipped with multiple safety devices.
• During the operation of the shelf, if there is a foreign object in the aisle, or a person, a forklift enters the aisle, the electric mobile shelf will automatically stop running and issue an acoustic and visual alarm.

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

CASE

—

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China

Electric Drive Telescopic Cantilever Rack

Rail-Guided Electric Mobile Rack

Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Ensure The Quality Of Huayide Racking Products

—

• The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
• The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
• Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
• Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
