Heavy Duty Rack
Warehouse heavy duty carton box storage metal shelving are
generally manual storage, assembled structure, the layer spacing is
50mm uniformly adjustable, and the goods are often loose or
packaged items that are not very heavy (easy for manual storage).
The shelf height is usually 2.5 m, otherwise it is difficult to
reach it manually (if supplemented by ascending step ladders, it
can be set at about 3m or even higher).
According to the load capacity of each shelf level, it can be
divided into light, medium and heavy duty shelves. , Wood
laminates. Shelve deckings are suitable for storing scattered,
lightweight goods and can be converted into attic shelves. In order
to meet the needs of more storage of goods, shelving racks can also
be configured with heavy beam supports (columns), which can be
designed as multi-level floors (usually 2-3 floors), equipped with
stairs, handrails and cargo lift elevators. It has evolved into an
attic shelf, which is especially suitable for the classified
storage of enterprise products such as auto parts and electronic
devices.
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Features & Advantages
——
1) The High grade of steel is used in the manufacturing process to
ensure consistency in performance
2) Superior Box or Step Beam - The Step beam section has greater
resistance to frontal impact and much higher torsional stiffness.
3) Beams welded at top of connector.
4) 4 Hook Connector for high load applications.
5) Stronger Upright with Rear Flange.
6) Beam levels are adjustable in 50MM pitch interval.
7) Standard colors: gray&Orange ,,Power Coating can be apply on
any color
8) Corrosion Protection make it use durable even though outside.
9) Bolt free with a welded frame.
10) Plug in beam easy to installation.
11) No Bolt on the foot plate , easy to move to anywhere in your warehouse.
Load Capacity | 300～500KG/Layer |
Color | White / Bule / Red,or Customized |
Upright Size | 75 × 35 × 0.9 mm 75 × 35 × 1.1 mm |
Beam Size | 60 × 40 × 0.9 mm 80 × 40 × 1.1 mm |
Panel Thickness | 0.4 mm 0.5 mm |
Size(L * W * H )mm | 2000 × 600 × 2000 |
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Structural Principles
——
Main and auxiliary frame analysis
The main and auxiliary frame structure saves storage cost and is
more solid
The main frame has two columns , which can be used separatel,the auxiliary frame has a column and cannot be used alone
Butterfly Hole
Free plug assembly , height per layer can be adjusted arbitrarily.
Perfect Welding
New welding technology , tighter joints , stronger load bearing.
Thickened Welded Feet
Wider & thicker foot , stronger bearing capacity.
Front of Steel Board/Back of Steel Board
Electrostatic spraying surface , corrosion rust , strong durable.Reforced design , firm and durable.
Heavy Duty Rack · Warehouse Storage Rack · Made In China

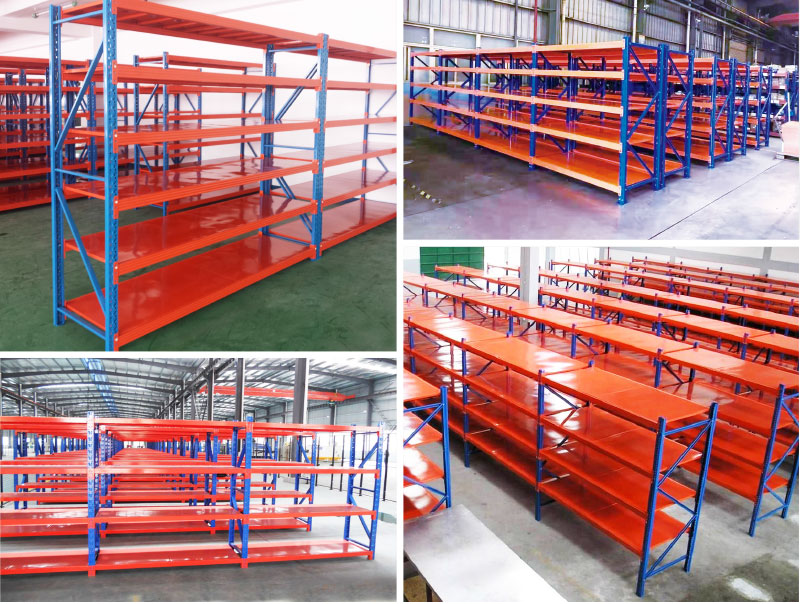

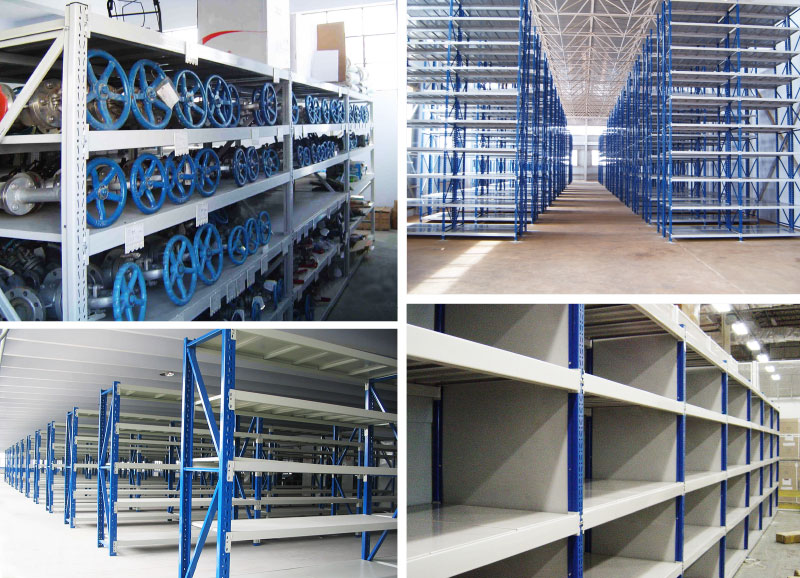

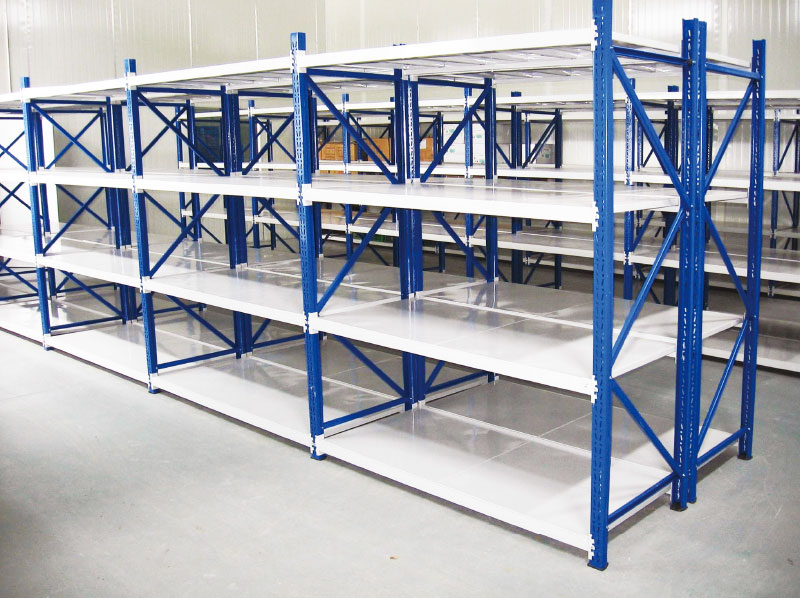

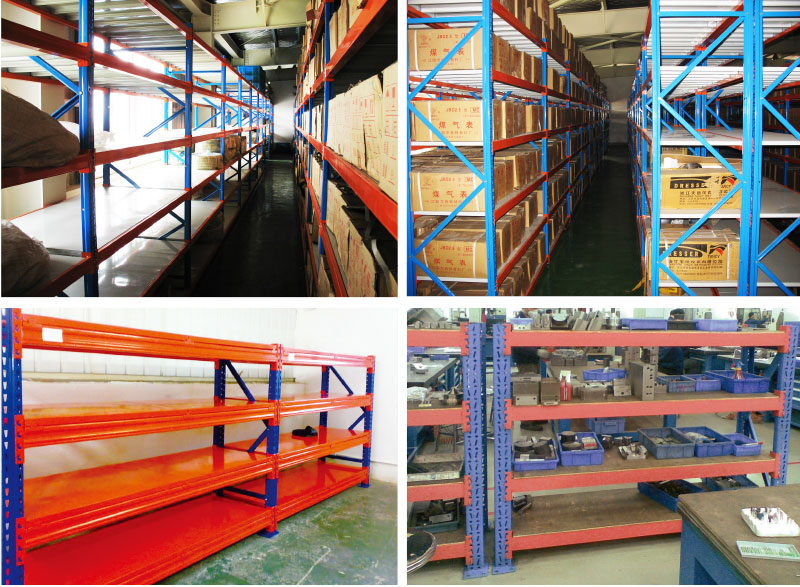

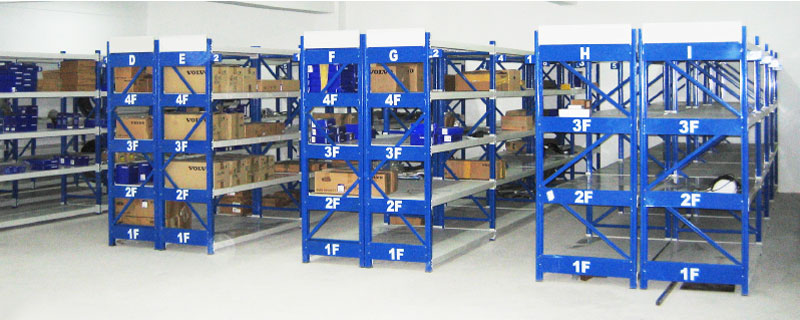

CASE
—
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Heavy Duty Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
